Model： LED panel HL 60*60-40W

Input Voltage：AC200-240V

Max.Current: 0.25A

Operating Voltage : DC36V

Constant Current: 0.9A

Power Consumption: 40W

Power factor: ≥0.9

LED Type: SMD4014

LED Qty: 180pcs

CRI: ≥80Ra

Life Time: 50.000 hours

Certifications: CE, RoHs.

IP Code: IP41

Luminaires Class: ClassⅢ

Product Dimension: 595*595*9MM

N.W： 3.0kg

Operating Temperature : -20 ---+50

Storage Temperature: -30---+60

Humidity Operating: 10-80%RH

Humidity Storage: 10-90%RH

Packing dimension(6pcs in box) : L670xW180xH695MM

G.W:  21.0kg

Installation Instruction:

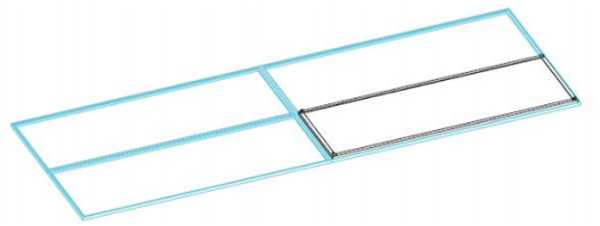

In-built :

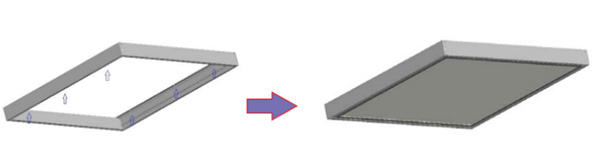

Mounting

Suspending:

Features Applications: Using Hi-quality,Hi-brightness LED as lighting source,high efficiency and energy-saving, free from glare and flicker,and has average luminous surface. Aluminum heat-sink base and No Glare Long-lifespan on average over 50 thousand hours is more than 10 times of traditional lamps. Adopting lampshade materials with more than 90% light transmittance,and aluminum aluminum alloy of high thermal conduction as lamp shell. Wide range of input voltage:AC200-240V. New high efficiency constant current driver. Instant start,no flickering,no humming. Special circuit design,four sides into the light,resorted to light more efficiently and evenly. No electrical wave,conforming to CE. Green environmental protection,lead-free material,conforming to ROHS. No RF interference. Decrease the maintenance fee,can be used for a long time without changing for new one
